Description

Product description

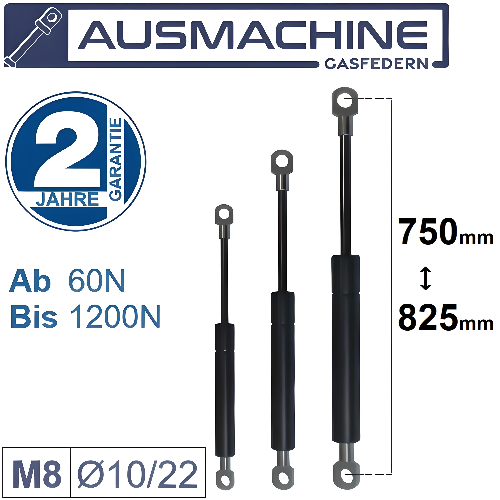

The gas pressure springs are sent as shown in the technical drawing, the "eye holes" at the respective ends of the gas springs (see technical drawing). The eye holes are removable.

Technical information

You can find exact data for the respective gas springs in the Technical drawing

Total Length : 750 mm ∼ 825mm ( from eye centre to eye)
Stroke: 330 mm ∼ 365mm
Force: 100 ∼ 1200N
Cylinder: Ø 22
Piston rod : Ø 10
Thread: M8
Thread Length: 10mm
Eye: Ø 8 mm
End Position cushioning : 40mm

Installation instructions

To ensure optimal performance of the gas spring, it must be installed with the Piston rod facing downwards

The warning sign or serigraph should not be removed

When checking the gas springs, the piston must be directed downwards

The piston rod should be protected from dust, paint and damage

The gas spring should not be mechanical, modified or damaged

Extension speed VS2: 0.1 - 0.3 (m / s)

Additional information

Shipping: 2-3 days delivery - shipment tracking.

Returns: Accepted within 30 days. Buyer pays return shipping

Item condition: New

Quantity per pack: 1

Developed & Designed: Macnotec GmbH, Germany

Country and region of manufacture: Turkey
