Description

Product description

The gas pressure springs are, as shown in the technical drawing, the "ball joints" at the respective ends of the gas springs (see technical drawing). The ball joints can be removed.

Technical information

You can find exact data for the respective gas pressure springs in the technical drawing.

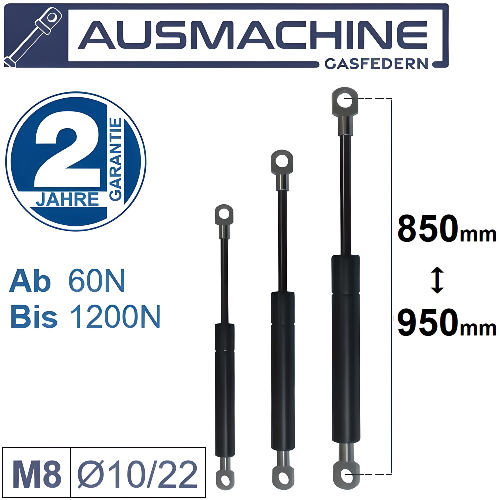

Total Length : 850 mm ∼ 950mm (from Eye center to Eye)
Stroke: 380 mm ∼ 425mm
Force: 100 ∼ 1200N
Cylinder: Ø 22
Piston Rod : Ø 10
Thread: M8
Thread Length: 10mm
Eye: Ø 8 mm
End Position cushioning : 40mm

Installation instructions

To ensure optimal performance of the gas spring, it must be installed with the piston rod facing downwards.

The warning sign or serigraph should not be removed.

When checking the gas springs, the piston must be directed downwards.

The piston rod should be protected from dust, paint and damage.

The gas spring should not be mechanical, modified or damaged.

Extension speed VS2: 0.1 - 0.3 (m / s)

Gas spring operating temperature range: -30°C to 80°C.

Additional information

Shipping: 2-3 days delivery - shipment tracking.

Returns: Accepted within 30 days. Buyer pays return shipping

Item condition: New

Quantity per pack: 1

Developed & Designed: Macnotec GmbH, Germany

Country and region of manufacture: Turkey
