Description

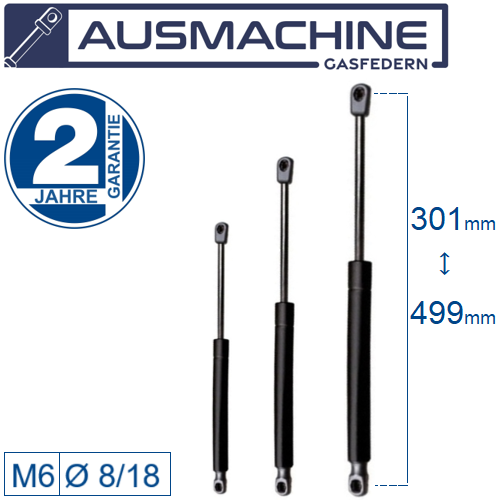

As shown in the technical drawing, the gas pressure springs are shipped with "ball sockets" at the respective ends of the gas springs (see technical drawing). The ball sockets can be unscrewed.

 Technical information
 You can find exact data for the respective gas pressure springs in the technical drawing.

 Total length : 301mm ∼ 499mm

 Stroke: 250mm ∼ 200mm

 Force: 100 ∼500Newton

 Cylinder: Ø 18

 Piston rod : Ø 8

 Thread: M6

 Thread Length : 10mm

 End Position cushioning: 40mm

  Installation instructions

  To ensure optimal performance of the gas spring, it must be installed with the Piston  rod facing downwards.

  The warning sign or serigraph should not be removed

  When checking the gas springs, the piston must be directed downwards.

  The piston rod should be protected from dust, paint and damage.

  The gas spring should not be mechanical, modified or damaged.

  Extension speed VS2: 0.1 - 0.3 (m / s)

  Gas spring operating temperature range: -30°C to 80°C.

Additional information

Shipping: 2-3 days delivery - shipment tracking.

Returns: Accepted within 30 days. Buyer pays return shipping

Item condition: New

Quantity per pack: 1

Developed & Designed: Macnotec GmbH, Germany

Country and region of manufacture: Turkey
