Description

Technical information

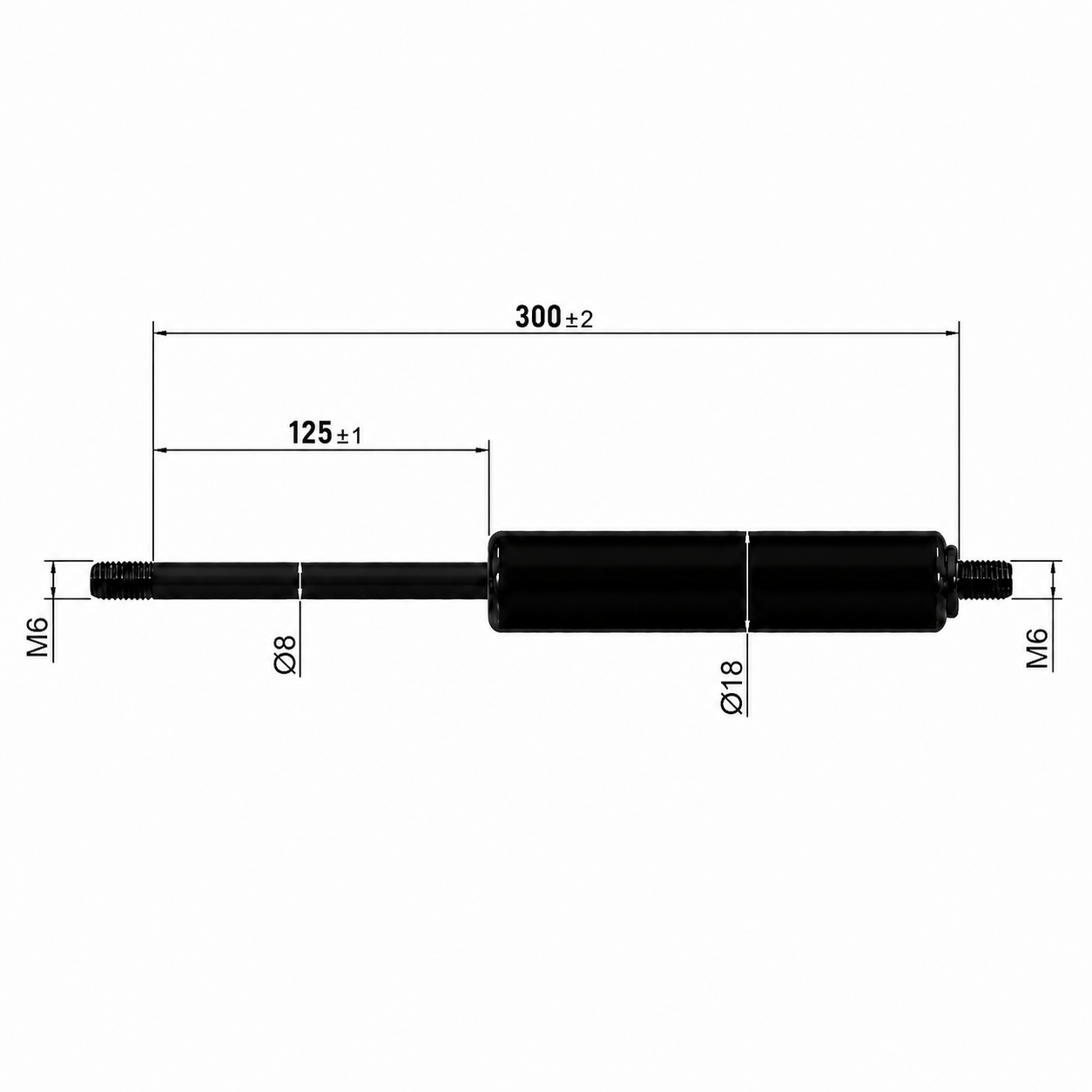

You can find exact data for the respective gas springs in the technical drawing.

Total length : 300mm ∼ 450mm
Stroke: 125mm ∼ 200mm
Force: 100 ∼ 600 Newton
Cylinder: Ø 18
Piston rod: Ø 8
Thread: M6
Thread length: 10mm
Eye: Ø 8mm
End position cushioning : 40mm

Installation instructions

To ensure optimal performance of the gas spring, it must be installed with the piston rod facing downwards.

The warning sign or serigraph should not be removed.

When checking the gas springs, the piston must be directed downwards.

The piston rod should be protected from dust, paint and damage.

The gas spring should not be mechanical, modified or damaged.

Extension speed VS2: 0.1 - 0.3 (m / s).

Gas spring operating temperature range: -30°C to 80°C.

Additional information

Shipping: 2-3 days delivery - shipment tracking.

Returns: Accepted within 30 days. Buyer pays return shipping

Item condition: New

Quantity per pack: 1

Developed & Designed: Macnotec GmbH, Germany

Country and region of manufacture: Turkey
