Description

Technical information

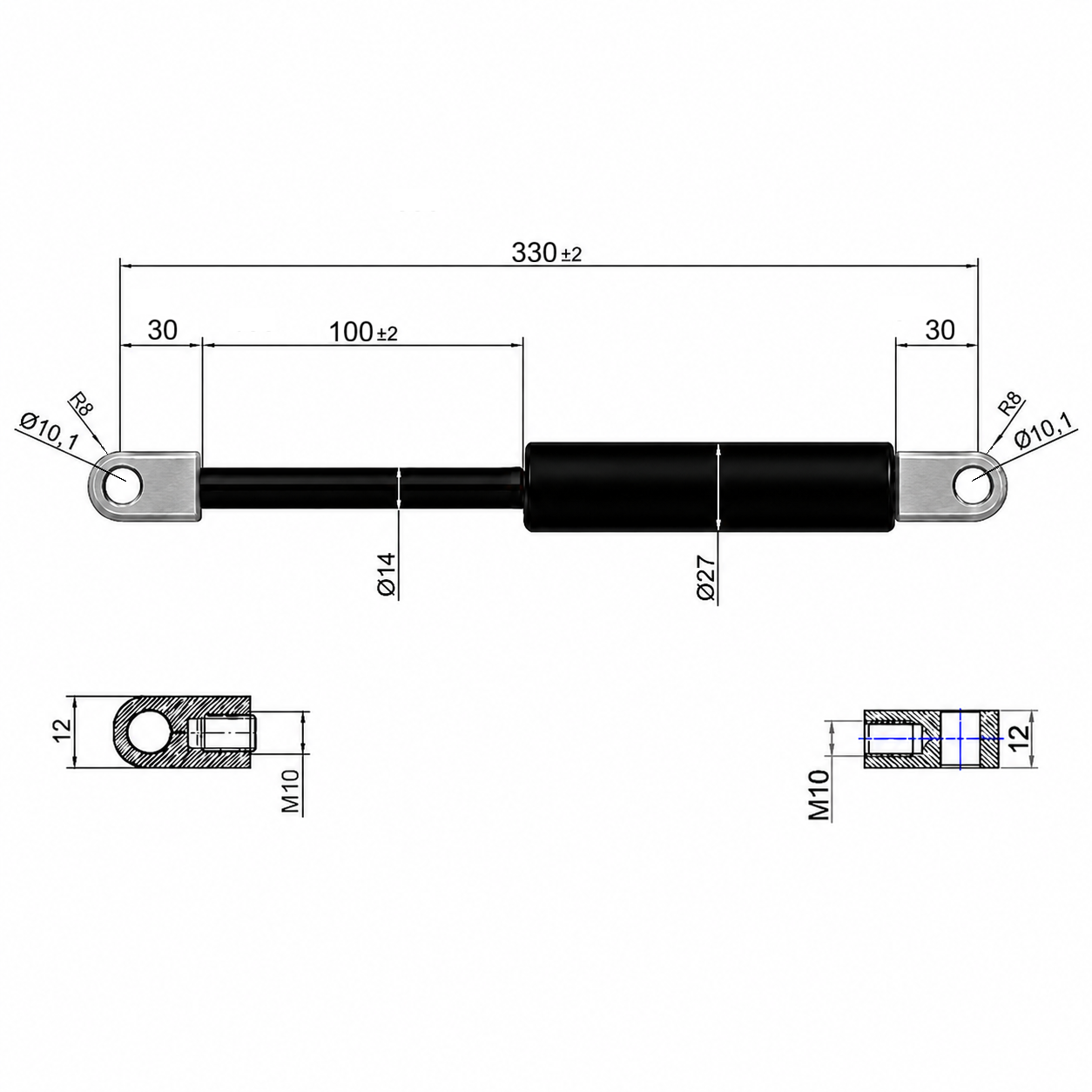

You can find exact data for the respective gas pressure springs in the technical drawing

Total length:3 30 - 1125mm

Stroke: 100 mm - 500mm

Force: 750 - 2500 Newton

Cylinder: Ø 28

Piston rod:  Ø 14

Thread: M10

Thread Length: 10 mm

Eye: Ø 8 mm / Ø 10mm

End Position cushioning: 40 mm

Installation instructions

To ensure optimal performance of the gas spring, it must be installed with the Piston rod facing downwards.

The warning sign or serigraph should not be removed

When checking the gas springs, the piston must be directed downwards.

The piston rod should be protected from dust, paint and damage.

The gas spring should not be mechanical, modified or damaged.

Extension speed VS2: 0.1 - 0.3 (m / s)

Gas spring operating temperature range: -30°C to 80°C.

Additional information

Shipping: 2-3 days delivery - shipment tracking.

Returns: Accepted within 30 days. Buyer pays return shipping

Item condition: New

Quantity per pack: 1

Developed & Designed: Macnotec GmbH, Germany

Country and region of manufacture: Turkey
