Description

Product Description

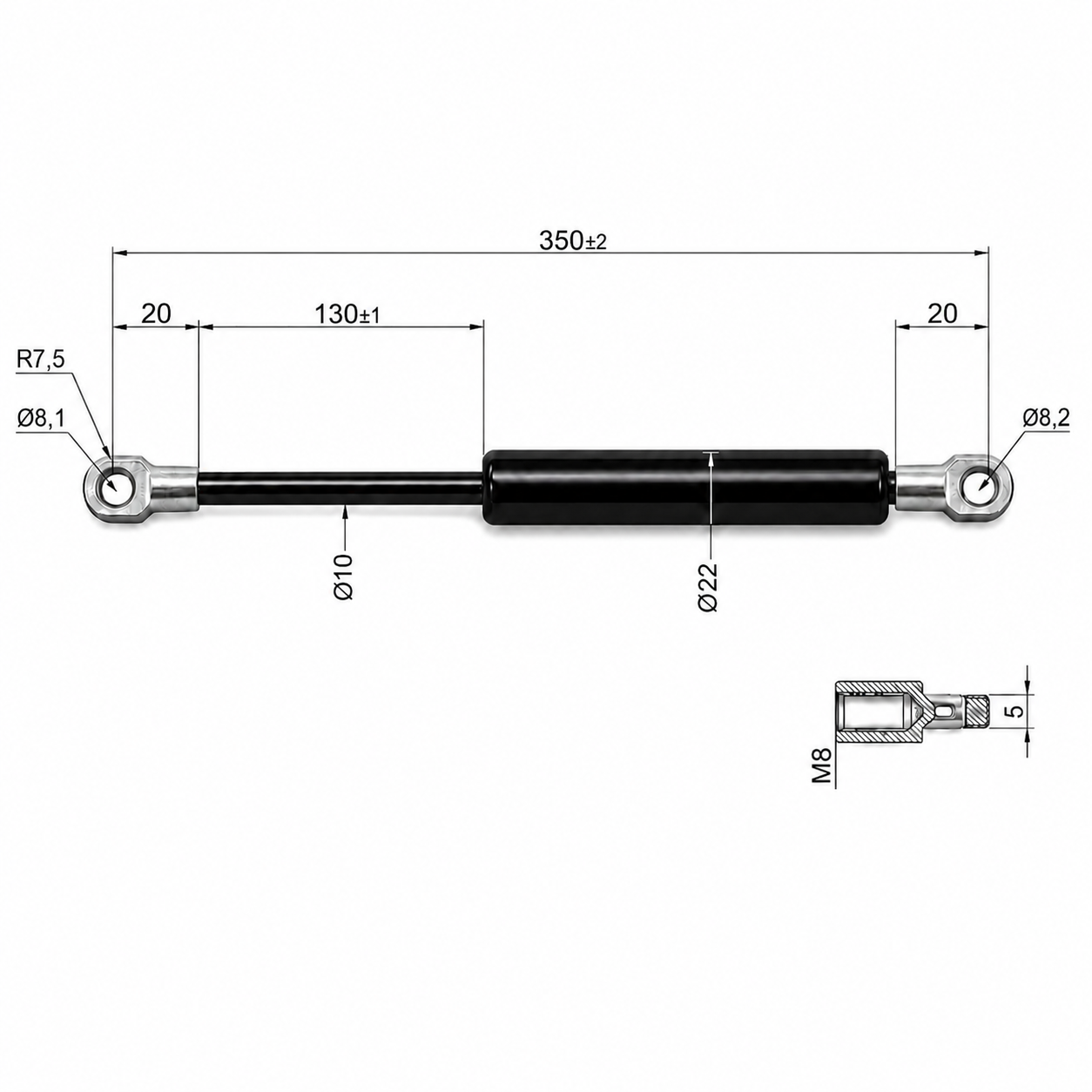

The gas pressure springs are sent as shown in the technical drawing, the "eye holes" at the respective ends of the gas springs (see technical drawing). The eye holes are removable.

Technical information

You can find exact data for the respective gas pressure springs in the technical drawing.

Total length: 350mm - 425mm (From Eye centre to Eye)

Stroke: 130mm - 170mm

Force:  100 - 1200N

Cylinder: Ø 22

Piston rod: Ø 10

Thread: M8

Thread Length: 10mm

Eye: Ø 8 mm

End Position cushioning: 40mm

Installation instructions

To ensure optimal performance of the gas spring, it must be installed with the   Piston  rod facing downwards.

The warning sign or serigraph should not be removed

When checking the gas springs, the piston must be directed downwards.

The piston rod should be protected from dust, paint and damage.

The gas spring should not be mechanical, modified or damaged.

Extension speed VS2: 0.1 - 0.3 (m / s)

Additional information

Shipping: 2-3 days delivery - shipment tracking.

Returns: Accepted within 30 days. Buyer pays return shipping

Item condition: New

Quantity per pack: 1

Developed & Designed: Macnotec GmbH, Germany

Country and region of manufacture: Turkey
