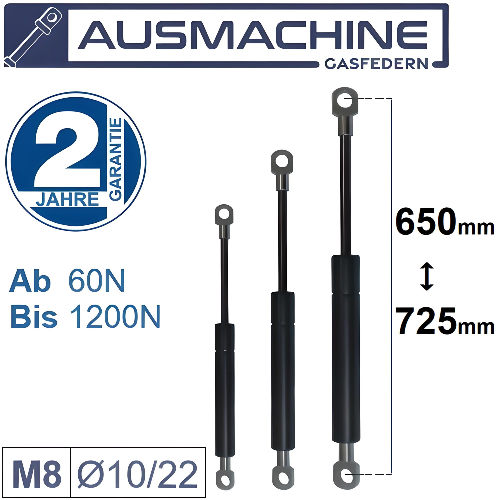

From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets
From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets

From 650mm ∼ Up to 725mm Length Gas Spring M8 Gas Strut Gas Pressure Damper with Eyelets

Price
£41.00
Availability:
In stock
SKU:
E40-610-280-F100-1022M8
Buy now
Quantity Discount applied automatically in the cart

Bulk order? Buy 21+ units and save up to −50% – applied automatically in the cart.

Visa PayPal Mastercard American Express Klarna Apple Pay SOFORT Google Pay Maestro JCB Discover Shop Pay
  • Description

    Gas Strut 650-725 mm, M8, Eyelets: 55 configurations to match your exact application, delivered fast UK-wide.

    • Extended length: 650–725 mm
    • Stroke: 280–315 mm
    • Force options: 75–1200 N (15 steps)
    • Thread: M8
    • Price: from £41.00

    Typical applications: tailgates, canopies, caravan hatches, machine covers and heavy lids. To find the right replacement, measure your old strut's extended length eye-to-eye and match the force to the weight of your lid or flap.

    Quantity discounts are applied automatically at Ausmachine: 10% off from 2 units, 15% from 3, 18% from 4 — and up to 50% on bulk orders of 21+ units. All 80+ gas strut products ship UK-wide.

    Product descrption

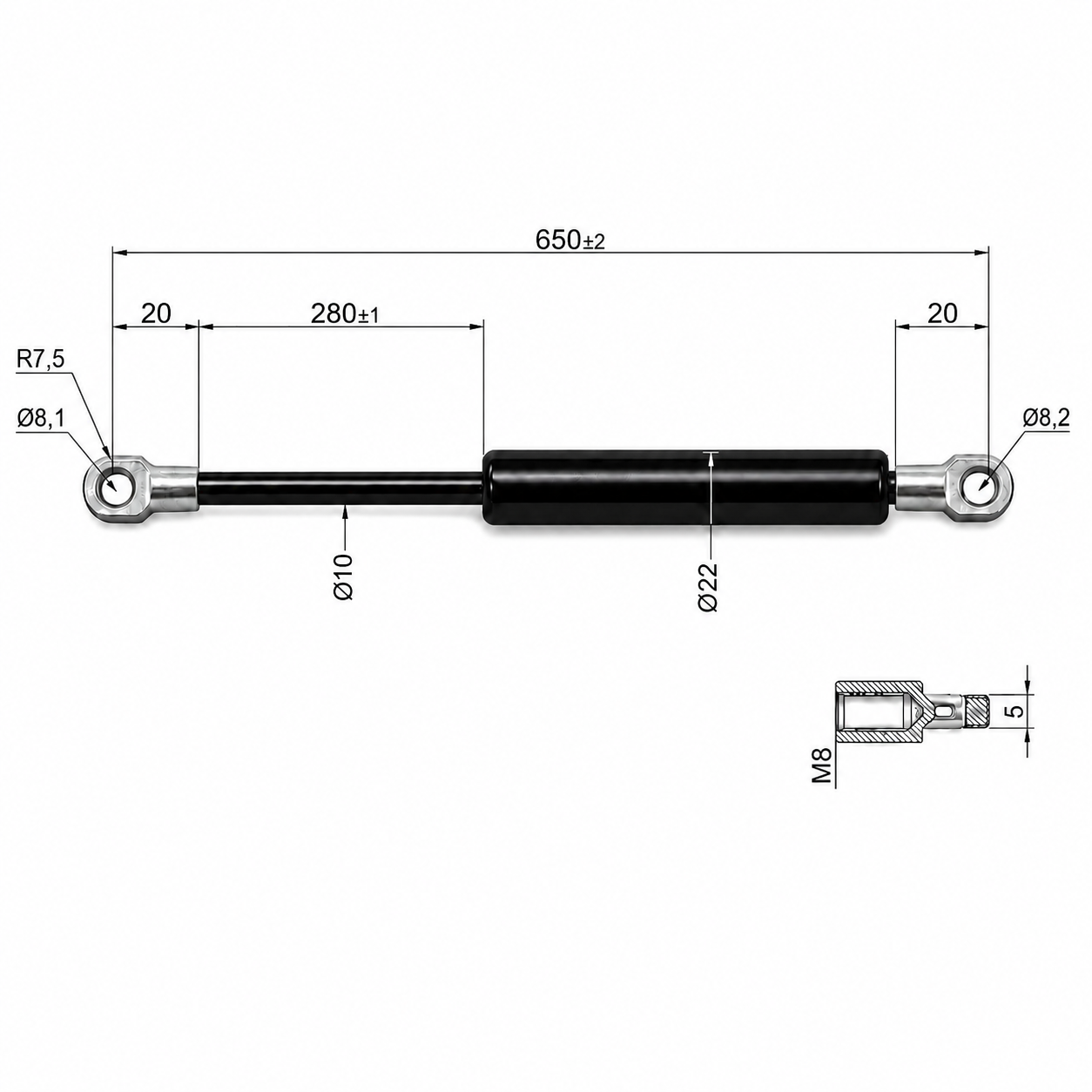

    The gas pressure springs are sent as shown in the technical drawing, the "eye holes" at the respective ends of the gas springs (see technical drawing). The eye holes are removable.



    Technical information

    You can find exact data for the respective gas pressure springs in the technical drawing.



    Total length: 650mm - 725mm ( from eye centre to eye)

    Stroke: 280mm - 315mm

    Force:  60 - 1200N

    Cylinder: Ø 22

    Piston rod: Ø 10

    Thread: M8

    Thread Length: 10mm

    Eye: Ø 8mm

    End Position cushioning: 40mm



    Installation instructions

    To ensure optimal performance of the gas spring, it must be installed with the   Piston  rod facing downwards.

    The warning sign or serigraph should not be removed

    When checking the gas springs, the piston must be directed downwards.

    The piston rod should be protected from dust, paint and damage.

    The gas spring should not be mechanical, modified or damaged.

    Extension speed VS2: 0.1 - 0.3 (m / s)
